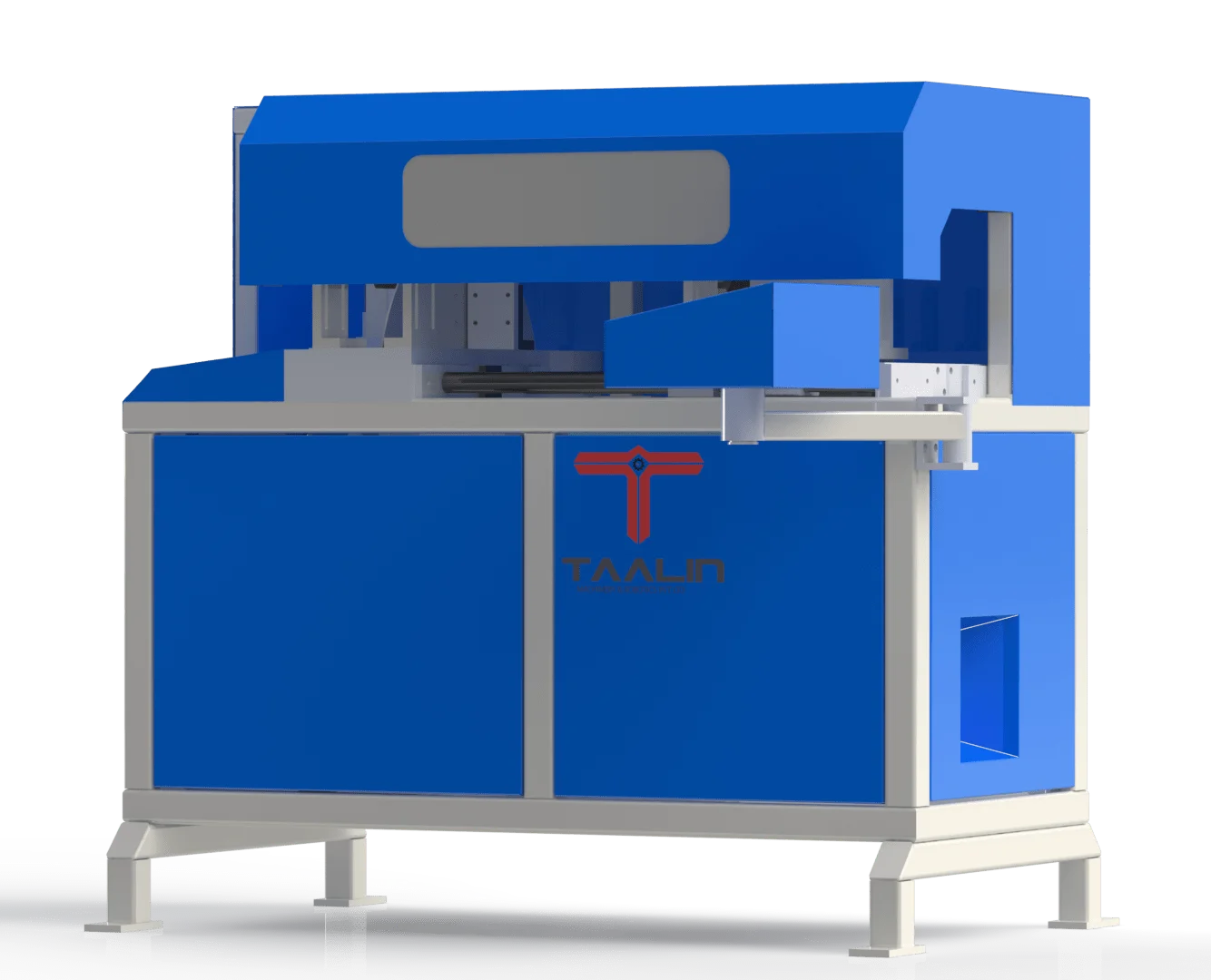

CNC Digital Cleating Cutting Machine/Upstroke (SCC-18D)

CNC Digital Cleating Cutting Machine/Upstroke

CNC Digital Cleating Cutting Machine/Upstroke (SCC-18D)

Digital Upstroke Cleat Cutting Machine with 420mm dia. Saw, TCT saw blades, horizontal & vertical Pneumatic clamps, Hydro-pneumatic feed, Digital profile feeding, High precision carrier positioning by servo motor, Auto feeding with span up-to 290mm with cut to length option of up-to 1150 mm.

Features and Functionality:-

  • Touch screen controller with servo motion feeding for fully automatic hassle-free precise cutting, 4X feeding is useful in case of cut to length application.
  • Cutting range 10mm to 290mm with multi feeding for cutting up-to 1150 mm.
  • Cooling system for cutting aluminium profiles and hydro-pneumatic feeding for smooth and precise cutting of all kind of sections.
  • Specially designed surface plate to avoid slippage while adding sturdiness.
  • Diameter of a diamond saw blade is 420 mm having cutting span of 150 mm vertically and 215 mm horizontally in circular orientation.
  • For security purpose at opening of a protective cover power supply is disconnected.
  • Vertical and horizontal adjustable pneumatic clamping, clamp fixture allows clamps to be set at 45 degrees as well.
  • Adjustable cutting speed by hydro-pneumatic feed control.
  • The machine is standard equipped with extension conveyor and cut piece collector and ball screw protection cover for long life.
  • Particular care has been taken over the safety measures, both mechanical and electrical.
  • Power supply protection device protects system from voltage overload, under voltage, missing phase etc.

  • Optional:-
  • Extended conveyor up to 3500 mm
  • Dust collector
Technical Specification
Saw Blade Diameter 420 mm
Voltage 380-415v, 3~, 50 Hz
Motor Power 1.5 Kw
Compressed Air Supply 7 bar
Servo Pack 400 watt
Dimensions(Length, Width, Height) 2760x640x1570 mm
Weight 320 Kg
